产品描述
|
|
材质类型 |
碳钢, 管线钢，合金钢，不锈钢，双相钢等
|
|
产品类型 |
尺寸 |
压力等级 |
|
ANSI Slip-On |
1/2"-24" |
150#-2500# |
|
ANSI W/D Neck |
1/2"-24" |
150#-2500# |
|
ANSI S/W |
1/2"-24"
|
150#-2500# |
|
ANSI THR’D |
1/2"-24" |
150#-2500# |
|
ANSI Lap Joint |
1/2"-24" |
150#-2500# |
|
ANSI Ring Joint |
1/2"-24" |
150#-2500# |
|
Long W/D Neck |
1/2"-24" |
|
|
Orifice Flange |
1/2"-24" |
300#-2500# |
|
MSS Flange |
12"-60" |
150#-900# |
|
API Flange |
26"-60" |
75#,150#,300# |
|
API 6B Flange |
2-1/16"~21-1/4" |
2000#-5000# |
|
API 6BX Flange |
26-3/4"~30" |
2000#-3000# |
|
API 6BX Flange |
1-13/16"~21-1/9" |
5000#-10000# |
|
API 6BX Flange |
1-13/16"~18-3/4" |
15000# |
|
API 6BX Flange |
1-13/16"~13-5/8" |
20000# |
|
AWWA Slip-On |
4"-120" |
Class B&D |
|
AWWA Blind |
4"-120" |
Class E |
|
DIN W/D Neck |
|
6 Bar-40 Bar |
|
DIN Slip-On |
|
6 Bar-40 Bar |
|
DIN Blind |
|
6 Bar-40 Bar |
|
KS&JIS Flange |
|
2Kg/cm2-21Kg/cm2 |
|

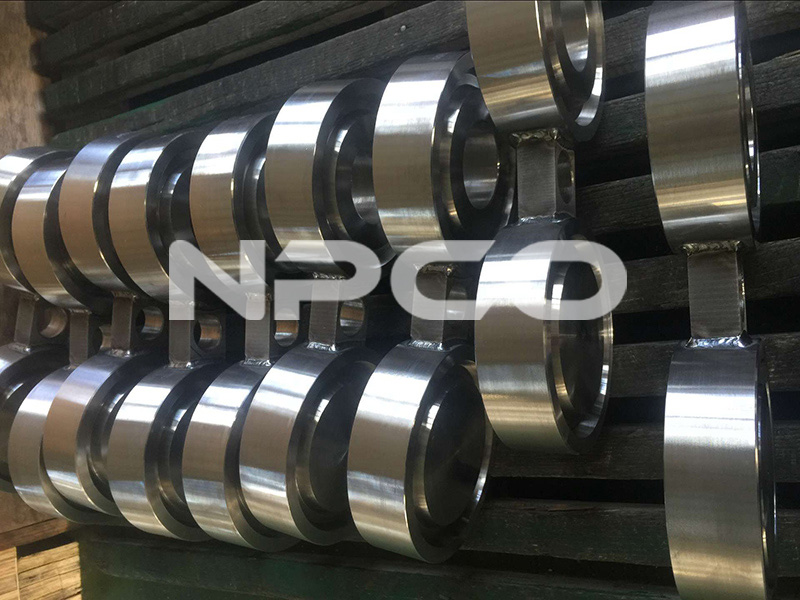

Spectacle Spacer&Blanks |
1"-36" |
150LB-900LB |
|
Spectacle Flange RF&FF |
1/3"-10" |
150LB,300LB |
|
EN Flange |
3/8"-48" |
PN 2.5-PN400 |
|
材质等级 |
· A105
· A350 LFI - LF2
· A182 F11 - F12 - F22 - F91
· A694 F52 - F60 - F65 - F70
· A182 F304 - F304L - F316 - F316L - F321 - F347H - F51 - F53
· 1.4571 - 1.4301 - 1.4541 - 1.4306 - 1.4404 - 1.4435
|
|
制造标准 |
ANSI B16.5
ANSI B16.47

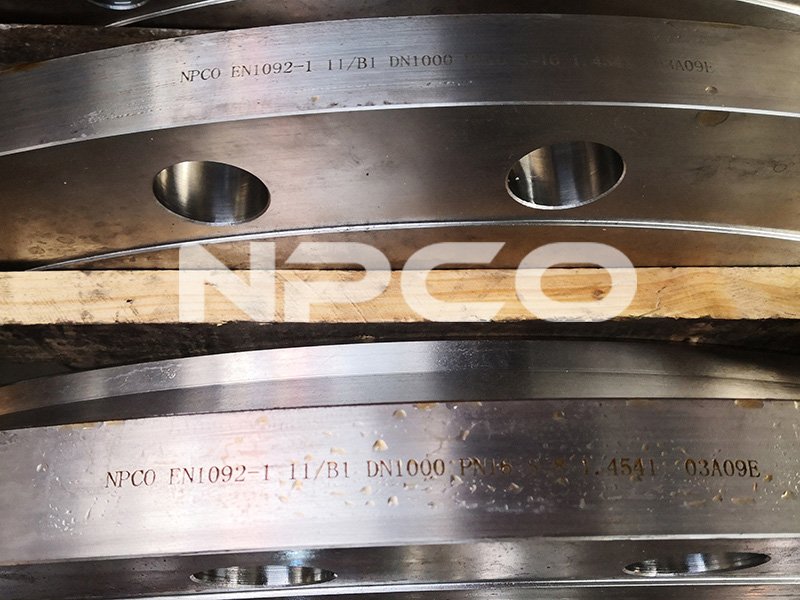

EN1092-1
DIN
|
|
